Criticare 8100 Poet Plus CO2 Monitor

SKU: C8PP0913
Units in Stock: 1
Criticare 8100 Poet Plus Vital Signs CO2 Monitor is preowned and in good condition.
Condition: Good
Type: PreOwned
List Price: $2,995.00
Price: $2,195.00
You Save: $800.00 (27%)
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
Criticare 8100 Poet Plus CO2 Monitor
(Click to see larger image and other views)
Product Details

Criticare 8100 Poet Plus Vital Signs CO2 Monitor - Preowned with Good Condition





VENDOR DESCRIPTION



Poet Plus® 8100 is the perfect choice for busy departments demanding maximum flexibility, unsurpassed ease of use, and accurate, reliable performance. Respond to every monitoring need, from standard vital signs to conscious sedation. Monitor adults, pediatrics, and neonates in virtually every department, at bedside or in transit. The Poet Plus 8100 mounts quickly and easily to walls, roll stands, and bedrails.



With the compact, lightweight Poet Plus 8100, you focus on your patients, not your monitor. The innovative user interface with simple, one-level menus and dedicated function keys ensures super-fast set-up. The big, bright display with large numerics is easily seen, even from across the room.





FEATURES



Easy-to-read 10.4" active TFT color display

View up to 6 waveforms simultaneously.

Easy to learn, easy to use menus, dedicated function keys, and simplified controls

Smart battery management with rechargeable "hot-swappable" sealed lead acid batteries

Lightweight design and versatile mounting options

Adapts readily to department and transport requirements





SPECIFICATIONS



System Outputs

Communication Ports: RS-232 compatible; DB9, analog mini-din
Nurse Call: contact switch, stereo jack 3.5 mm, length 14 mm standard

Defib / Sync: BNC connector

Video Port: high density D-sub 15-pin



Recorder

Type: Thermal Line Printer

Paper speed: 12.5, 25, 50mm/sec



Mechanical

Weight: Base unit without batteries: 12 lbs, 5.45kg

Size: Base unit: 13.25 "(H) x 12.5" (W) x 8.75 "(D)



Power Requirements

Voltage: 100, 120, 220, 240 VAC, 50/60 Hz

Consumption: 35 W, typical

Batteries: 2, Sealed Lead Acid, life: 2 hr, typical recharge time: 4.5 hours



ECG

Connectors: 3- or 5-lead

Leads: User-selectable; I, II, III, aVR, aVL, aVF, V (5-lead); I, II, or III (3-lead)

Gain Selection: 1/2mV, 2mV, 4mV

Frequency Response:
- Diagnostic: 0.05 to 100 Hz (-3db);
- Monitor: 0.5 to 40 Hz (-3db)

Sweep Speed: 12.5, 25, 50mm/sec

Electrosurgery Protection: Yes

Defibrillator Protection: Yes

Pacer Detection/Rejection: Yes



Non-Invasive Blood Pressure

Technique: Oscillometric measure upon inflation

Automatic Measurement Cycles: 2, 3, 5, 10, 15, 30 min; 1, 2, 4 hr

Measurement Range: Adult: 30 to 300mmHg; Neonate: 0 to 150 mmHg

Resolution: 1mmHg

Transducer Accuracy: ±2mmHg or ±2% of reading, which ever is greater, over full range

STAT mode: 5 min of consecutive readings



Pulse Oximetry

Range: 1% to 99%

Resolution: 1%

Accuracy: 70% to 99% range: ±2%; 50% to 69% range: ±3%; <50%: unspecified

Method: Dual wavelength LED



Heart (Pulse) Rate

Source: ECG (primary); IBP, Pleth; NIBP

Range: 20 to 300bpm

Accuracy: ±1bpm or ±1% (ECG, IBP, SPO2 only)



Temperature

Channels: 2

Range, Accuracy:
68° to 94.8° F: ±0.5%;
95° to 107.4° F (35° to 41.9° C): ±0.2%;
107.6° to 113° F (42° to 45° C): ±0.5%

Probe: YSI-400 and YSI-700 series



Respiration

Rate: 6 to 150 breaths/min

Resolution: 1 breath/min

Accuracy: ±1% or ±1 breath/min, whichever is greater

Source: User selectable: Smart, CO2, ECG-TTI



CO2

Units: mmHg; Torr; %; kPa

Waveform Scale: 0 to 3.13%, 0 to 6.25%, 0 to 12.5% and 0 to 25%

Method: Non-dispersive infrared; auto calibrating

N2O Compensation: Manual; On/Off, user selectable

Range: 0 to 99mmHg; 0 to 99 Torr; 0 to 12.5%; 0 to 12.5 kPa

Resolution: 1mmHg; 1 Torr; 0.1%; 0.1 kPa

Sample Rate: Sidestream, selectable: 150ml/min or 50ml/min

Accuracy:
+2mmHg, ±0.3 volume %, ±0.3 kPa, or ±2 Torr at 150ml/min and respiratory rate of ±35 breaths/min

Rise Time: 350ms at 150ml/min (10 to 90%)





RESOURCES



Criticare 8100 Poet Plus Vital Signs Brochure





CONTENTS

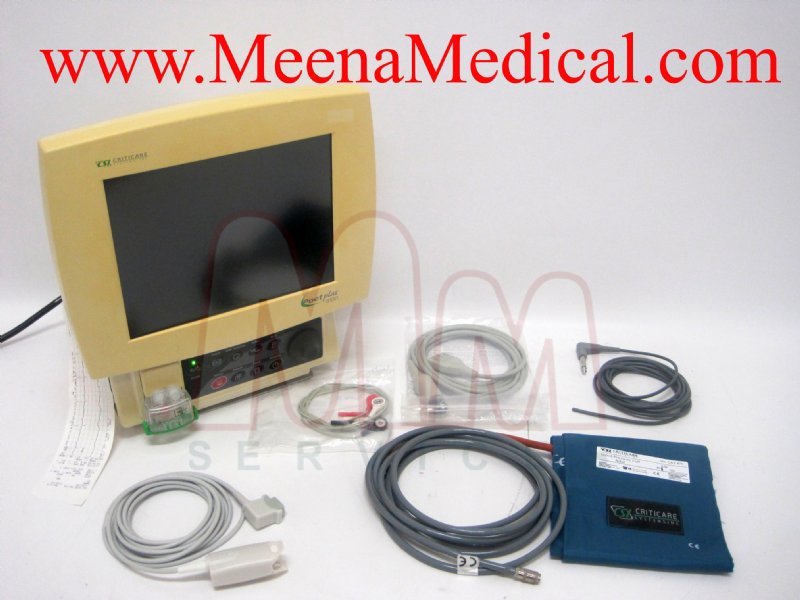

Qty - 1 Criticare 8100 Poet Plus Vital Signs Monitor 81C001P (CO2 with Printer)

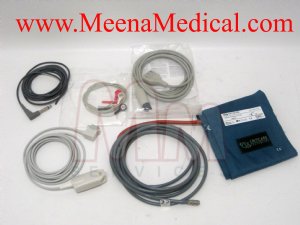

Qty - 1 Criticare SpO2 Extension Cable and Sensor with Finger Probe

Qty - 1 AMC 3-Lead ECG Cable CB-71320R (NEW)

Qty - 1 AMC 3-lead DIN to Snap Leadset LW-2090024/3A (NEW)

Qty - 1 Criticare Blood Pressure Cuff and Hose
Qty - 1 YSI Temperature Probe Reusable Cable


Only items specified in the contents section are available with product.





CONDITION



Cosmetic - Good

Working - Good
