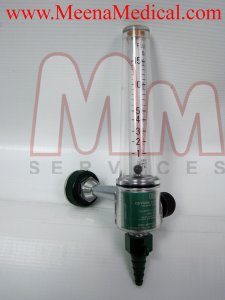

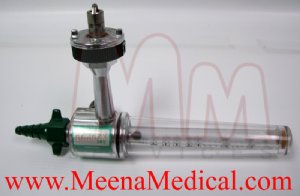

Ohio Pressure 1-15 L/min Oxygen Flowmeters

SKU: OHO2FLO15
Brand: Ohio
Units in Stock: 5
Ohio Pressure Compensated 1-15 L/min Oxygen Flowmeters
Condition: Good
Type: PreOwned
Price: $50.00
Ohio Pressure 1-15 L/min Oxygen Flowmeters
Ohio Pressure 1-15 L/min Oxygen Flowmeters
Ohio Pressure 1-15 L/min Oxygen Flowmeters
Ohio Pressure 1-15 L/min Oxygen Flowmeters
Ohio Pressure 1-15 L/min Oxygen Flowmeters
Ohio Pressure 1-15 L/min Oxygen Flowmeters
(Click to see larger image and other views)
Product Details
Ohio Pressure Compensated 1-15 L/min Oxygen Flowmeters - Preowned in Good Condition


DESCRIPTION AND APPLICATION
The Pressure Compensated Flowmeter is designed to meet strict standards of durability and precision. The base is constructed of solid aluminum and finished in a clear anodized plating. The flow control valve consists of a precision needle valve threaded into a brass seat.
This provides extended resistance to wear and corrosion. The flowtube and shroud are made of clear polycarbonate and have a lifetime warranty.

Flowmeters are available with a wide variety of options including DISS Power outlets and twin flowmeter confi gurations. They are also available with an optional plastic DISS tubing nipple and a multitude of wall adapters.
  • Provides accurate gas flow measurement and control within a range of 1-15 L/min
  • For use in a variety of respiratory therapy clinical application
  • Features large easy to read increments with an expanded 1-5 L/min range for improved readability at low flows
  • Dual taper and rear surface textured to enhance readability
  • Flush setting delivers a minimum of 65 L/min
  • Supply pressure of 50 psi

FEATURES AND BENEFITS

Durable

  • Impact resistant flowtube and shroud
  • Solid aluminum body with clear anodized plating
  • DISS outlet thread with protection rim

Precise

  • Pressure compensated, accurate flow readings
  • Flowtubes individually tested for accuracy
  • High precision glass ball ensures maximum repeatability
  • Double scale eliminates optical distortion

Safety features

  • Shroud locks onto the base with inlet adapter; prevents loosening, leaks, and possibility of ejecting shroud when pressurized
  • Knob and needle valve have a stop to prevent entire component from unscrewing completely
  • Color coded to help prevent cross connections

Easy to maintain

  • Lifetime warranty on flowtube and shroud
  • Complete needle valve assembly kits available
  • Discounted replacement parts kits available



Please contact us for more information.
