2011 NuAire Incubator NU-5510

SKU: NU-5510-42124
Units in Stock: 1
The NuAire DHD Autoflow Automatic CO2 Air-Jacketed Incubator has been designed to provide a reliable controlled in-vitro environment for optimum tissue cell culture growth. The chamber also provides an environment for the storage and preservation of embryos, gametes and animal tissue cell cultures at near body temperature. There are five parameters that contribute to optimum growth conditions. These are: 1. Humidity 2. Precise temperature control 3. Precise CO2 control 4. Sterility 5. Reliability. Like all NuAire equipment, this Incubator has been designed to provide the highest quality standards of performance with matching computer technology, precise temperature control, and CO2 gas control system combining state-of-the-art technology with years of design, quality, and manufacturing experience.
Price: $995.00
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
2011 NuAire Incubator NU-5510
(Click to see larger image and other views)
Product Details

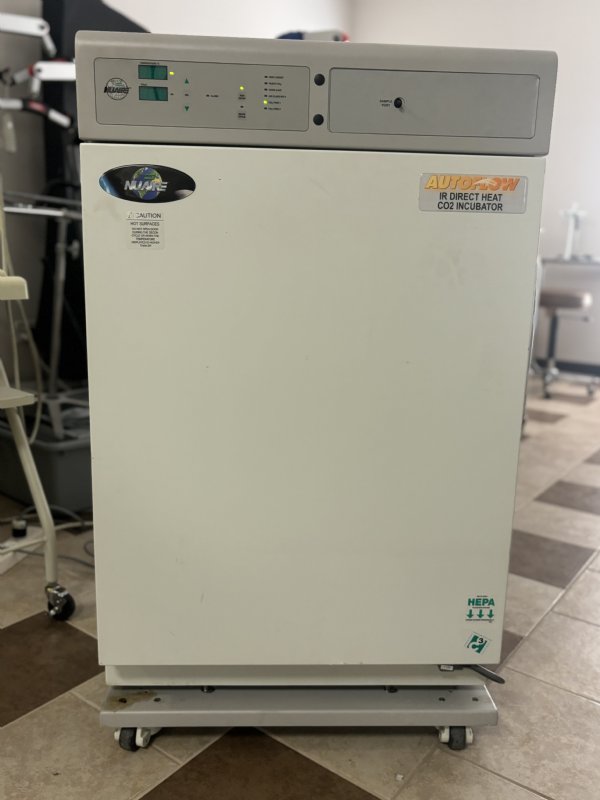

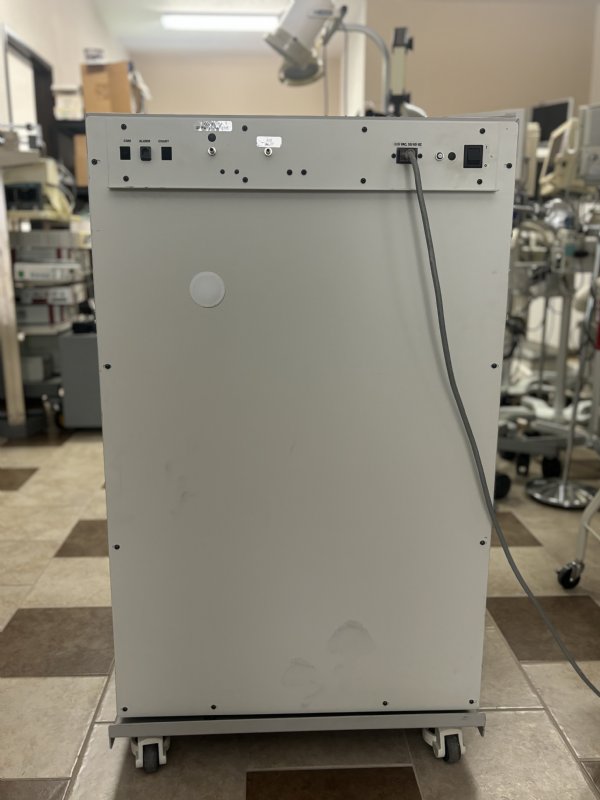

2011 Nuaire Incubator NU-5510 - Good Condition

Product Description

  • The NuAire DHD Autoflow Automatic CO2 Air-Jacketed Incubator has been designed to provide a reliable controlled in-vitro environment for optimum tissue cell culture growth. The chamber also provides an environment for the storage and preservation of embryos, gametes and animal tissue cell cultures at near body temperature. There are five parameters that contribute to optimum growth conditions. These are: 1. Humidity 2. Precise temperature control 3. Precise CO2 control 4. Sterility 5. Reliability.  Like all NuAire equipment, this Incubator has been designed to provide the highest quality standards of performance with matching computer technology, precise temperature control, and CO2 gas control system combining state-of-the-art technology with years of design, quality, and manufacturing experience.

Features

  • Both the interior and exterior of the DHD Autoflow are constructed of 16-gauge material. The interior is highly polished type 304 stainless steel, using crevice-free construction. All exposed edges are deburred to insure no sharp edges. The exterior is cold rolled steel finished in a powder coated polyurethane finish, which is resistant to chemicals and easily cleaned using mild household detergents.

  • The DHD Autoflow's microcomputer temperature control system has two temperature sensors located in the chamber. The temperature sensors compare the values to a set point and execute a differential control algorithm that energizes a solid-state switch, supplying power to the heaters.

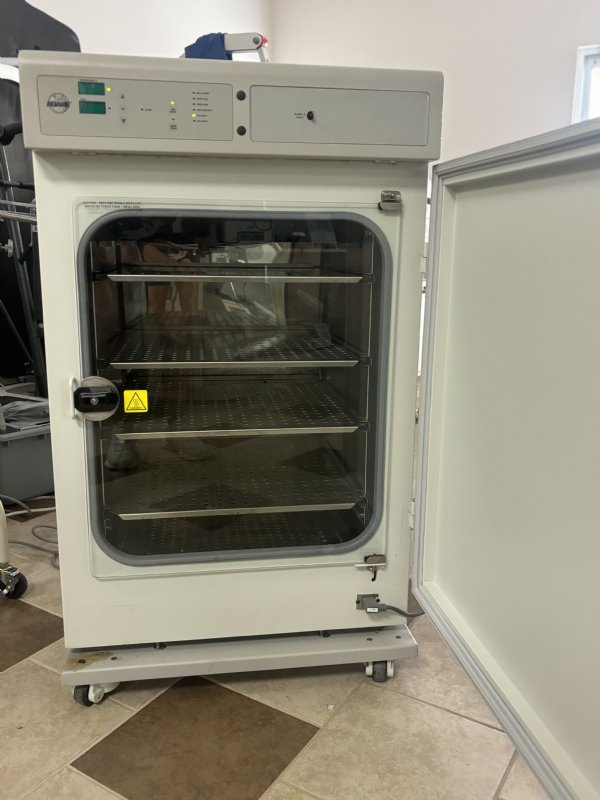

  • Up to 17 shelves can be placed inside the chamber (4 supplied).

  • Space-age high temperature material is used to insulate the inner chamber walls.

  • Foil heaters are directly attached to the chamber walls and the top and bottom surfaces of the inner chamber.

  • Incubators can be stacked for space saving, and can still be serviced from the front.

  • Easily removable inner chamber plenum shelves and rails for sterilization.

  • Most electronics, motors, pumps, and valves are fully accessible from the front of the unit.

  • A CO2 sample port is provided on the front panel to check the concentration of CO2 in the chamber.

  • The CO2 percentage is controlled by a solid-state gas infrared sensor, which provides accurate

  • monitoring of CO2 affected minimally by changes in temperature or humidity levels in the chamber.

  • Automatic recovery of the CO2 level after a 1minute door opening to 5.0 + 0.2% is within a 4-1/2

  • minute period.

  • The outer door includes an internal radiant heater in order to minimize condensation on the inner glass door. A magnetic outer door gasket helps to insure a tight seal against the cabinet.

  • The inner glass door is 3/16” tempered with smooth-ground edges and seals are tight against a Ugrooved silicone rubber gasket. The door latch is cam action. An all solid-state magnetic switch

  • monitors door motion.

  • All control electronics are protected with a circuit breaker that may trip at 110% of loading rating but will trip at 145% of load rating in less than 2 seconds. Should the circuit breaker open (pop-out button will appear), merely depress to reset.

  • The Incubator has factory-installed adjustable leveling legs to compensate for uneven laboratory surfaces.

Specifications

  • Height: Exterior: 39.5 Inches (1003.3mm)

  • Width: 25.5 Inches (647.7mm)

  • Depth: 26.5 Inches (673.1mm)

  • Height: Interior: 25.5 Inches (647.7mm)

  • Width: 21.5 Inches (546.1mm)

  • Depth: 21.0 Inches (533.4mm)

Components

  • Four (4) stainless steel shelves

  • Eight (8) stainless steel shelf brackets

  • Two (2) sidewall plenums (installed)

  • One (1) blower plenum (installed)

  • One (1) water pan

  • Gas tube and filter

  • Air intake tube and filter

  • Access port plug with breather holes (installed)

  • Outer shell plastic hole ring (installed)

  • 2 meters long electrical cord

  • Operation and Maintenance Manual

  • Operating Instructions

Please contact us for more information
