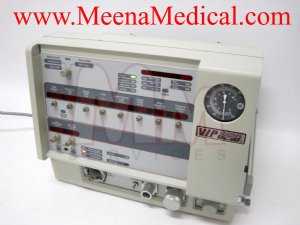

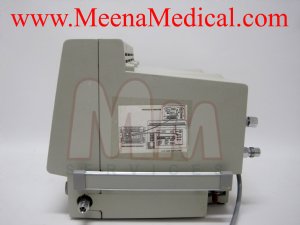

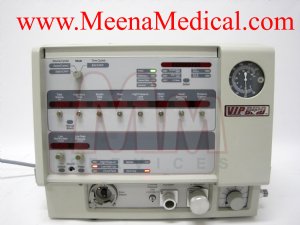

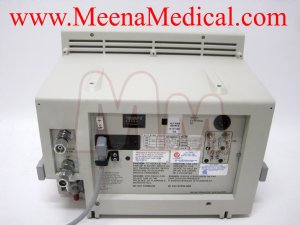

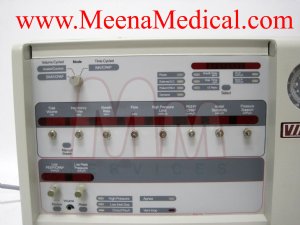

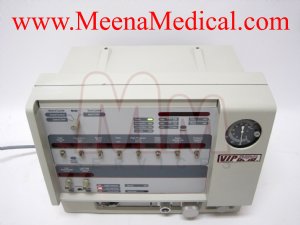

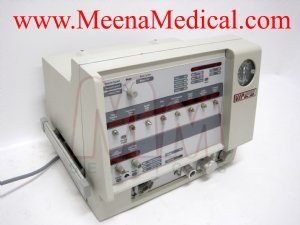

Bird VIP Infant Pediatric Ventilator 15003

Bird VIP Infant Pediatric Ventilator Model 15003 - Preowned in Fair Condition

VENDOR DESCRIPTION

Bird VIP Infant Ventilator purpose is to provide mechanical ventilation to neonatal and infant patients who present with respiratory insufficiency.

The Bird VIP Infant ventilator is an electrically powered, microprocessor controlled, pneumatically driven, time and volume cycled, pressure and volume limited ventilator with the following modes of ventilation.

–         Assist Control

–         SIMV/CPAP

–         SIMV/Pressure Support

FEATURES

Micro-processor controlled

Integrated monitoring of peak inspiratory pressure, mean airway pressure, and I:E ratio

Neonatal, infant, and pediatric patients

Demand or continuous flow

20 to 760 ml. tidal volumes

0 to 150 bpm

Comphrensive alarm package

SPECIFICATIONS

Peak Inspiratory pressure:

–         3-80 cmH20 (Time Cycled)

–         3-120 cmH20 (Volume Cycled)

Tidal Volume: 20 - 760 mls.

PEEP:  0-24 cmH20

I-time:  0.1-3.0 seconds.

Breath rate: 0-150bpm.

Flow control:

–         Volume cycle: 3-100 lpm.

–         Time cycle: 3-40 lpm (inspiratory); 3-15 lpm (expiratory)

–         Pressure support: 3-120 lpm.

High pressure limit:

–         Volume cycle: 3-120 cmH20.

–         Time cycle: 3-80 cmH20.

Assist Sensitivity:

–         Volume cycle: -1 to -20 cmH20.

–         Time cycle: off, 0.2-4.0 lpm.

Pressure Support: off, 1-50 cmH20.

Termination Sensitivity: off, 5-25% OF I-time.

Oxygen blender auxiliary output: 0-15 lpm.

Over pressure relief valve: 0-130 +/- 10cmH20

Physical Dimensions:

Ventilator Only:  12"h x 15"w x 13"d

Ventilator & Stand:  54"h x 20¾"w x 24"d

Weight:

Ventilator Only:  39 lbs

Ventilator & Pedestal:  85 lbs

CONTENTS

Qty - 1 Bird VIP Infant Ventilator

Only items specified in the contents section are available with product.

CONDITION

Cosmetic - Fair

Working - Untested

Please contact us for any more information

011013
