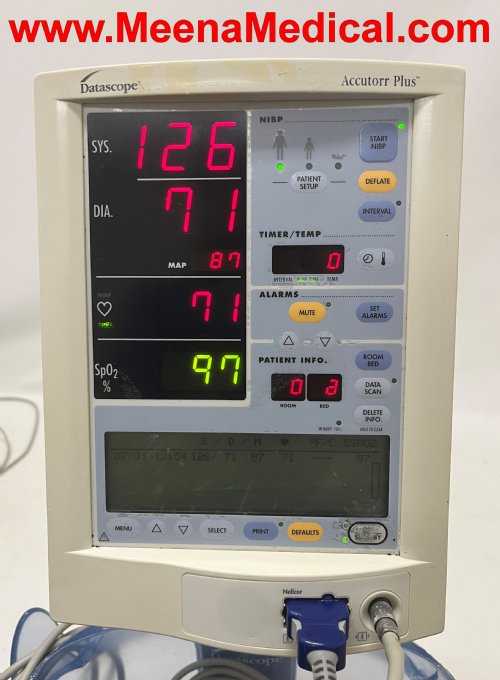

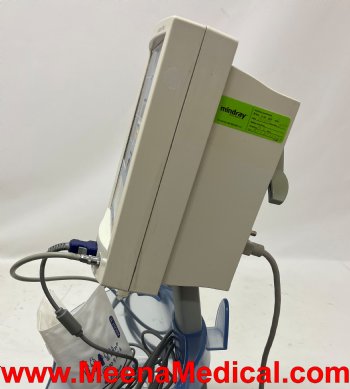

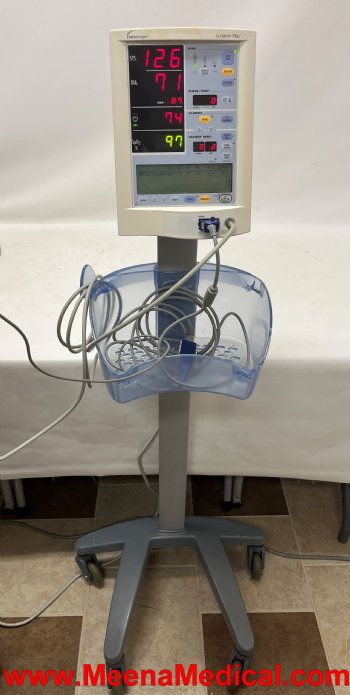

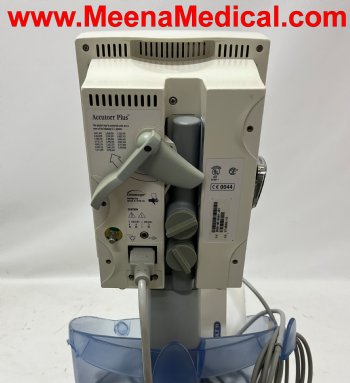

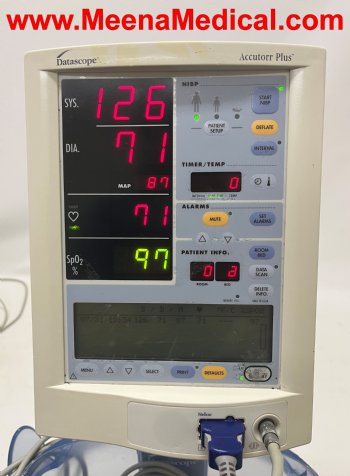

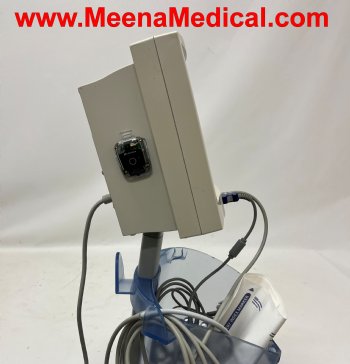

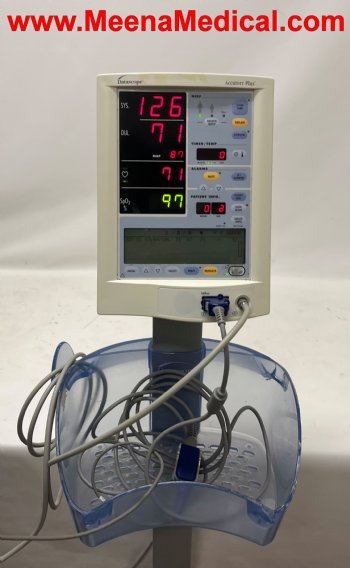

Datascope Accutorr Plus Patient Monitor With NIBP, Nellcor SpO2, and Temp - Pre-Owned in Great Condition
VENDOR DESCRIPTION
Accutorr Plus NIBP. It’s all there. Proven Accutorr performance and our most advanced NIBP technology, designed specifically for ease of use – all in a lightweight, easily transported portable/bedside monitor.
The Accutorr Plus is an easy to use, non-invasive blood pressure monitor available with predictive temperature and recorder modules for cost-effective upgradability.
Predictive Temperature – at the speed you want and the accuracy you demand.
FEATURES
Light weight, portable with user-configurable technology
Easy-to-read large numbers
Dedicated controls which can be customized
Easily configurable:
- Patient size
- Interval time
- Alarms
- Inflation pressure
- Audio level
- Temperature format
Quick connect, single hose fittings
Unique flexible databases
IV pole/bed rail attachment
Battery operation
Non-intrusive Blood Pressure (NiBP) Monitor
Stores up to 100 readings, instantly accessible
Predictive thermometer module
Nellcor OxiMax pulse oximetry
Various flexible mounting options
SPECIFICATIONS
Systolic and Diastolic Pressure Readout
- Number of Digits: 3
- Accuracy*: Mean error < ±5 mmHg
- Standard deviation < ±8 mmHg
- Range: Adult Mode: 55 to 260 mmHg
- Pediatric Mode: 55 to 160 mmHg
- Neonatal Mode: 45 to 120 mmHg
Pulse Rate
- Range: 35-245 BPM for Adult and Pediatric
- 70-245 BPM for Neonate
- Display Resolution: 1 BPM
- Accuracy: ±3 BPM or ±3%, whichever is greater
Inflation Source
- This inflation source is capable of supplying sufficient air to bring a volume of 700 cc’s to a pressure of 300 mmHg in no more than 35 seconds. If the cuff is not inflated to the desired pressure within 60 seconds, then the cuff is vented and a retry cycle is initiated.
Leak Rate
- With the bleed valve closed, the maximum pressure drop is 10 mmHg in 90 seconds measured with a 700 cc volume at a differential pressure of 250 mmHg.
Cuff Vent Rate
- When the unit is vented, a volume of at least 700 cc’s is reduced from a pressure of 250 mmHg to a pressure of 20 mmHg in a maximum of 14 seconds.
- Temperature (Predictive)
- Range: 90-110°F, 32-43°C
- Display Resolution: 0.1°F, 0.1°C
- Accuracy: Meets ASTM E1112-2006 for accuracy
Nellcor® SpO2
- Range: 70-100% SpO2
- Display Resolution: 1% SpO2
- SpO2 Response Time: 4.5 to 6.5 seconds
- Display Update: Less than 4 seconds
- Calibration: Factory Calibrated to Functional Saturation
- Accuracy*: ± 2 digits from 70 - 100% SpO2 - Adult
- ± 3 digits from 70 - 100% SpO2 - Neonates
- <70% unspecified
- Pulse Rate Range: 21 to 249 BPM
Rechargeable Battery
- Battery: Sealed Lead Acid
- Run Time: 1.5 to 5 hours
- Recharge: 8 hours
- Cycles: 150 - 400
Dimensions Size (maximum):
- Main Unit: 7.5" (W) x 10.6" (H) x 8.2" (D)
- Recorder Module: 2.1" (W) x 9" (H) x 4.25" (D)
- Predictive Module: 2.25" (W) x 6.25" (H) x 4.63" (D)
CONTENTS
Qty 1 - Datascope Accutorr Plus Patient Monitor
Qty 1 - Predictive Temperature Module with Probe
Qty 1 - Sealed Lead Acid battery

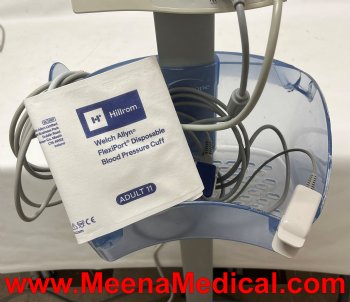

Qty 1 - Blood Pressure Cuff
Qty 1 - DataScope Nellcor Finger Probe
Qty 1 - Power Cable
Only items specified in the contents section are available with product. If questions please feel free to contact us.
CONDITION
Cosmetic - Good
Working - Excellent
Please contact us for any more information
