Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP

SKU: DP20323
Units in Stock: 1
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Condition: Very Good
Type: Pre-Owned
Price: $1,745.00
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP
(Click to see larger image and other views)
Product Details

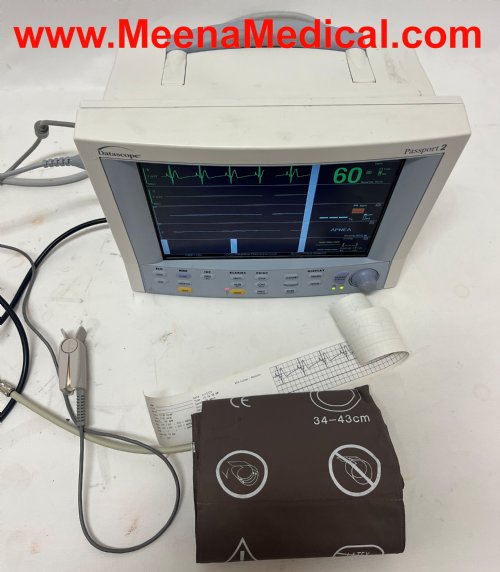

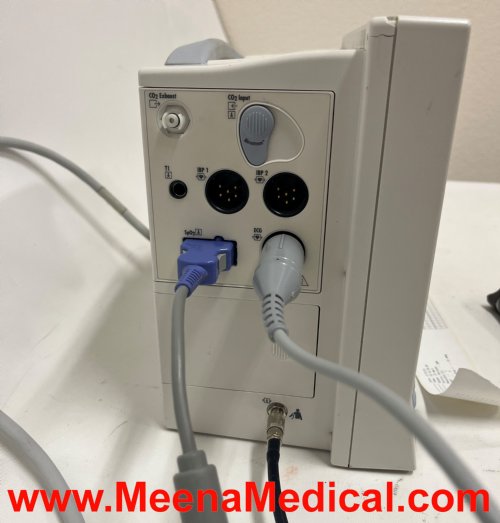

Datascope Passport 2 with CO2, 3 Lead ECG, SpO2, Printer, NIBP - Preowned in Very Good Condition


VENDOR DESCRIPTION

FEATURES

ECG Monitor
Three Lead: RA, LL, LA
Printer
Non-invasive blood pressure
Pulse oximetry
Battery back up for transport


SPECIFICATIONS

Display
10.4 inch color TFT display.

ECG
Leads: I, II, III, aVR, aVL, aVF, V.
Autodetecting Datascope 3 or 5 wire.
Delay: =35 ms max between QRS Peak and rising edge of Sync Pulse.
Sensitivity: 1 V/mV of input, ± 10%.
Defibrillator Overload Protection: Withstand 360 Joule discharge as per IEC 60601-2-27, 51.101.1.
Recovery Time: Time for recovery to within 1mV in < 8 seconds automatically. 3 seconds from 1Vpp at 60Hz.

IBP
Range: Sys/Dia/Mean -30 – +300 mmHg.
Accuracy: ± 2 mmHg or 2% whichever is greater.
Zero Range: ± 120 mmHg.

Heart Rate
Range: 30 – 300 BPM Adult/Pediatric, 30 – 350 BPM Neonate 3-lead and 5-lead.
Accuracy: ± 3 BPM or ± 3% at 30 – 250 BPM whichever is greater.

Respiration (ECG)
Range: 4 to 199 BPM.
Accuracy: ± 2% or 2 breaths per minute whichever is greater from 4 to 150 BPM.

Recorder
Speed: 3.125, 6.25, 12.5, 25mm, and 50mm/sec Note: 3.125 speed is for CO2/Resp only.

Battery
Type: Lithium-ion
Number of Batteries: 2
Voltage: 11.1 Vdc
Capacity: 4.4 AH each
Run Time: 5 hrs from two fully charged batteries at 25° C with ECG, SpO2 and 1 NIBP every 15 minutes, no recording, no CO2
Recharge Time: 5 hrs max

Temperature
Scale: Selectable C° or F°
Range: 15° to 45° C / 59° to 113° F
Accuracy: ± 0.1° C (15° C to 45° C) exclusive of probe errors. ± 0.2° F (59° F to 113° F) exclusive of probe errors.


CONTENTS

Qty - 1 Datascope Passport 2 Multi-Parameter Monitor
Qty -  1 Three Lead ECG Cable (NEW)
Qty -  1 Pulse Oximeter Finger Probe
Qty -  1 NIBP Cable with Adult Cuff


CONDITION

Cosmetic - Very Good
Working - Excellent


MANUAL

User Manual


NOTE

As displayed, product has a small chip on the top left corner but this does not affect performance.


Please contact us for any more information
