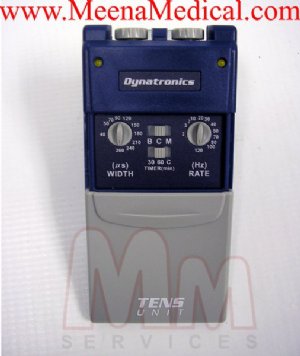

Dynatronics Dual Channel TENS w/ case

SKU: DDCTU
Units in Stock: 5
Dynatronics Dual Channel T.E.N.S. Unit is Brand New
Condition: New
MPN: DDCTU
Type: New
Price: $95.00
Dynatronics Dual Channel TENS w/ case
Dynatronics Dual Channel TENS w/ case
Dynatronics Dual Channel TENS w/ case
Dynatronics Dual Channel TENS w/ case
Dynatronics Dual Channel TENS w/ case
Dynatronics Dual Channel TENS w/ case
(Click to see larger image and other views)
Product Details

Dynatronics Dual Channel T.E.N.S. Unit - NEW





VENDOR DESCRIPTION



The dual -channel Analog & Digital T.E.N.S. is a battery-operated two-channel transcutaneous electrical nerve stimulator that creates electrical impulses. Intensity, duration, number per second and modulation of those impulses can be altered with easy to use controls or switches, all in a light-weight package.





FEATURES



Hard panel cover to conceal and protect the control panel.



Modes switch offering 3 modes of treatment (B) Burst, (C) Continuous, and (M) Modulation.



Treatment timing device can be pre-select/set with time switch. Featuring 2 programs of fixed duration of 30 and 60 minutes, and 1 continuous output.



Pulse Width controller to regulate pulse width for both channels.



Pulse rate regulates the pulse per second for both channels.





SPECIFICATIONS



Channel:            Dual, isolated between channels

Pulse intensity:  Adjustable 0-90mA peak into 500 O load each channel, constant current

Pulse rate:        2Hz-120Hz (adjustable)

Pulse width:      40µs - 260µs (adjustable)

Timer:               30, 60 minute and continuous mode selectable



B:         Cycle bursts, 2 bursts/sec; 9 pulses/Burst, 100Hz, width is adjustable

C:         Continuous mode. Pulse rate, pulse width and intensity are adjustable

M:        Modulated width. Pulse width is automatically varied in an interval of 6 seconds. The modulation range of pulse width is from setting value to 35% less than the control setting value, then returns to the setting value. Rate, width and intensity are adjustable.



Wave form:        Asymmetrical Bi-phasic square pulse

Voltage:            0-110 volt (open circuit)

Max charge

per pulse:          23.5 micro-coulombs

Power Source:   9-Volt Battery

Dimensions:      95 mm (H) x61.5mm (W) x26m (T)

Weight:             Approx. 120 grams (battery included)

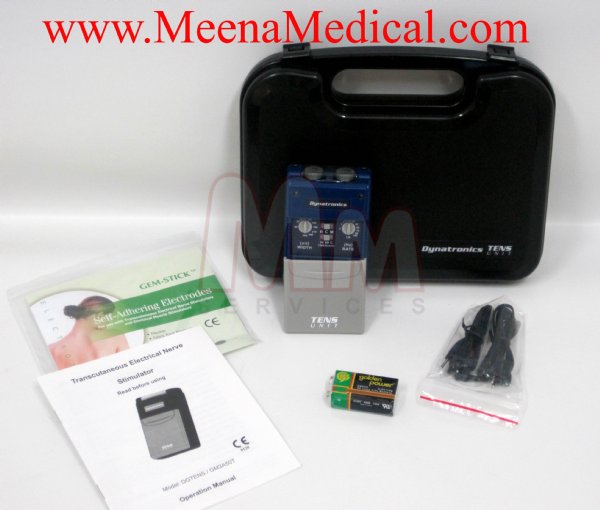

CONTENTS



Qty - 1 Dynatronics T.E.N.S. Unit

Qty - 2 Lead Wire Electrodes

Qty - 1 Gem Stick Self Adhesive Electrode

Qty - 1 Operators manual

Qty - 1 Carrying Case





Only items specified in the contents section are available with product.





CONDITION



Cosmetic - New

Working - New



Please contact us for any more information
