GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer

SKU: GD4000PMCO20523
Brand: GE
Units in Stock: 1
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer - Pre-Owned in Very Good Condition
Condition: Very Good
Type: Pre-Owned
Price: $1,995.00
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer
(Click to see larger image and other views)
Product Details
GE Dash 4000 Patient Monitor with 3 Lead ECG, SpO2, NIBP capability, CO2, and Printer - Pre-Owned in Very Good Condition


VENDOR DESCRIPTION

With the Dash 4000 monitor from GE Healthcare, you can adapt to each patient’s monitoring needs in virtually every high-acuity situation. Versatile, modular and portable, Dash monitors address Clinical Information Logistics* by helping enable you to put the right monitoring solution in the right place at the right time. Dash monitors provide excellent clinical intelligence—when you need it—to help you make informed care decisions.


FEATURES
   - ECG, Nellcor technology, Non-Invasive Blood Pressure (NIBP), SpO2, Temperature, CO2, and printer.

Front of Monitor
   - Alarm Light Indicator: Provides a visual alarm for patient status alarms.
   - Control Panel: Provides quick function keys and the Trim Knob control to navigate menus and select options.

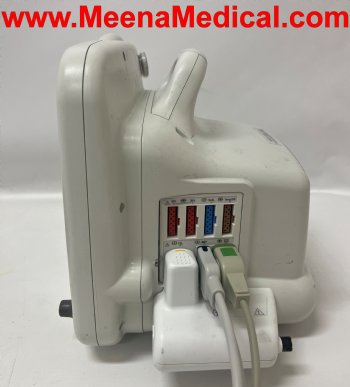

Right of Monitor

   - Patient Connectors: Allows patient cables to connect to the monitor.
   - Enabled Option Labels: Identifies the options enabled on the monitor.

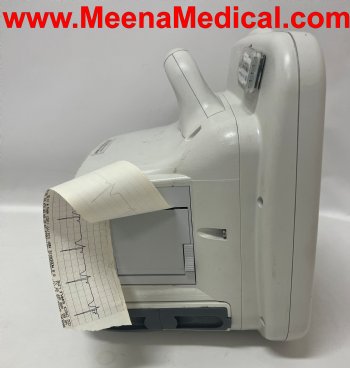

Left of Monitor

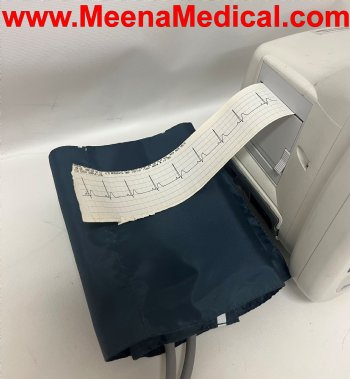

   - Built-in writer: Prints on two inch wide paper.
   - Battery doors: Holds up to two batteries to provide power during patient transport or whenever AC power is interrupted.

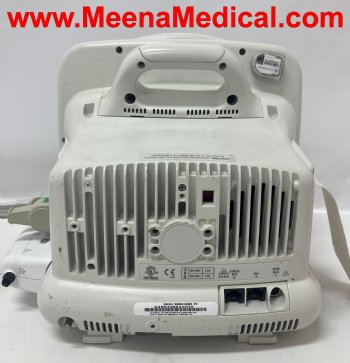

Back of Monitor

   - Line voltage selector: Matches the line voltage and frequency rating for your country.
   - Product code label: Identifies the product code for this monitor for identification and service needs.
   - Equipotential stud: Provides a common reference to an auxiliary device via a ground wire attached to the stud.
   - DC power connector: Provides connection for DC power cable. The internal power supply converts the AC current to DC power. The monitor is preset at the factory for a specific AC voltage.
   - Wireless transmitter label: Identifies monitors that contain an internal wireless transmitter for network communication.
   - Ethernet connector: Provides network connections to other monitors and devices used in the patient monitoring network.
   - Aux connector: Provides serial connection to compatible auxiliary devices, including: Remote control, TRAM-RAC housing, Remote display, Nellcor® 395 pulse oximeter, Aspect® BISx module.
   - Defib Sync connector: Provides analog output signals to other equipment.
   - Voltage and current requirements: Identifies the voltage and electrical current requirements for proper and safe operation of this monitor.
   - Speaker: Provides an audible announcement of patient and system status alarms.

Main Display

   - Time, date and factory or custom default name
   - Care unit and bed name
   - Patient name
   - Parameter windows
   - Parameter waveforms
   - MORE MENUS
   - Large Clock/Date
   - Message line
   - Battery gauge

Parameter Window
   - Digital values
   - Parameter window label
   - Alarm limits
   - Units of measurement

Alarms
   - Alarm pause: Lasts no more than three minutes.
   - Alarm volume: Can be turned off, lowest setting is 10 percent.
   - Discharge alarms: The monitor alarms every three minutes.
   - Alarm levels: Automatically increased to patient status advisory.


SPECIFICATIONS
   - Temperature Range: 32 to 113 °F (0 to 45 °C).

Default Unique Alarms

   - NBP-S, NBP-D, NBP-M (ADULT-ICU and OPERATING ROOM): 350 to -25.
   - NBP-S, NBP-D, NBP-M (NEONATAL-ICU): 150 to -25.
   - ART: 300 to 30.
   - HR: 300 to 30.
   - SPO2: 105 to 60.
   - SPO2-R: 235 to 40.
   - TEMP: 450 to 0.

Parameters

   - ECG gain: Derived by mV (.25 mV to 2 mV) and displayed on the primary ECG waveform.
   - Units of measurement: Metric only.
   - Arrhythmia level: The default arrhythmia alarm level for ADULT-ICU is FULL; NEONATAL-ICU and OPERATING ROOM are OFF.
   - Heart rate: Values under 30 bpm are not displayed. The values displayed in the parameter window are replaced with "X”.
   - SpO2 saturation: Values under 60 percent are not displayed. The values displayed in the parameter window are replaced with "X”.

Printed Output
   - Type (alarm, manual or saved), Alarm violation (if any), Unit name, bed number and patient name, Date and time, Patient-monitor type, Alarm volume, Speed.
   - Lead failed (if any), Heart rate, Arrhythmia call (if any)
Pace mode (if on), Arrhythmia mode (full, lethal, off), PVC count (if arrhythmia mode is on), ST value for top displayed lead (if on), ECG filter (Hz range), Monitored parameter values.

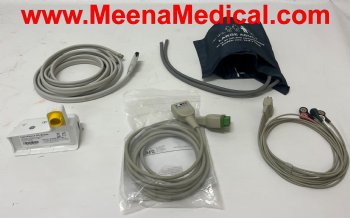

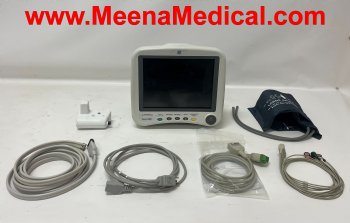

CONTENTS

Qty 1 - GE Dash 4000 Patient Monitor

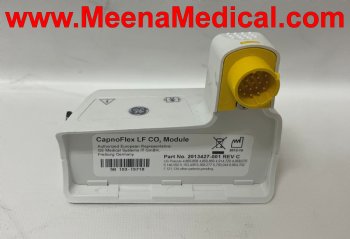

Qty 1 - GE Dash Capnoflex LF CO2 Module

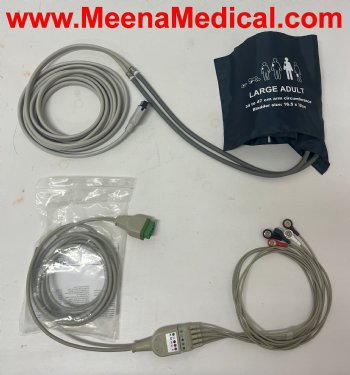

Qty 1 - NIBP Hose & Cuff
Qty 1 - ECG Cable and Leads
Qty 1 - Power Cord


CONDITION

Cosmetic - Very Good
Working - Excellent


BROCHURE AND MANUALS

Monitor Brochure
Operator's Manual
Service Manual
Data Sheet


Please contact us for any more information
