Mortara ELI-250

Mortara instrument ELI 250

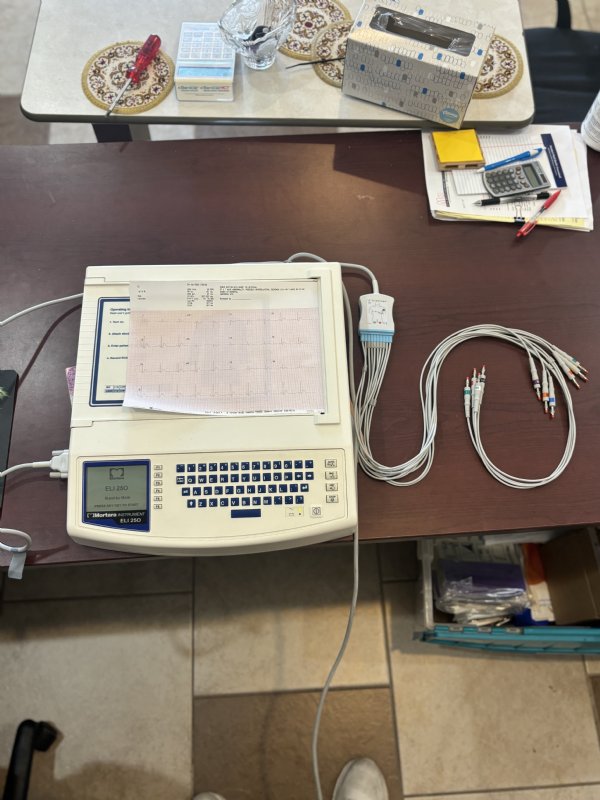

The ELI 250 is a 12-lead diagnostic electrocardiograph capable of viewing, acquiring, printing, and storing ECG data. The ELI 250 is optionally equipped with Mortara’s VERITAS 12-lead resting interpretation algorithm. If this option is enabled, the VERITAS ECG algorithm can provide an over reading physician with a silent second opinion through diagnostic statements output on the ECG report. For additional information on the Mortara VERITAS resting interpretation algorithm, please refer to the Physician’s Guide to ECG Interpretation.

Specifications

Instrument Type - 12-lead Electrocardiograph

Input Channels - Simultaneous acquisition of 12 leads

Standard Leads Acquired I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

Waveform Display - Backlit, 1/4 VGA LCD 3-channel lead groups or complete 8-channel presentation

Input Impedance, input dynamic range, electrode offset tolerance, common mode rejection - Meet or exceed the requirements of Input Dynamic Range ANSI/AAMI EC11

Patient Leakage Current, Chassis Leakage Current - Meet or exceed requirements of ANSI/AAMI ES1

Digital Sampling Rate - 10,000 s/sec/channel used for pacemaker spike detection; 1000 s/sec/channel used for recording and analysis

Special Functions - Optional Mortara VERITAS resting interpretation algorithm; connectivity options for bi-directional communication; flash memory storage of ECGs

Paper Type - Full size (8.5" x 11" or A4), Z-fold thermal paper; 250 sheets stored in paper tray Thermal Recorder - Computer-controlled dot array; 8 dots/mm

Thermal Writer Speeds - 5, 10, 25, or 50 mm/s

Gain Settings - 5, 10, or 20 mm/mV

Report Print Formats - Standard or Cabrera: 3+1, 3+3 channel, 6-channel, 12-channel

Rhythm Print Formats - 6-channel with configurable lead groups, or 12-channel

Keyboard Type - Elastomer keypad with complete alphanumeric keys, soft-key menu and dedicated function keys

Frequency Response - 0.05 to 300 Hz

Filters - High performance baseline filter; AC interference filter 50/60 Hz; low pass filters 40 Hz or 150 Hz

A/D Conversion - 20 bit (1.17 microvolt LSB)

Device Classification - Class I, Type CF defibrillation proof applied parts

ECG Storage - Up to 60 ECGs; optional expanded up to 150 ECGs

Weight - 11.25 lb. (5.1kg) including battery

Dimensions - 15.5" x 17" x 4" (39.4 cm x 43.2 cm x 10.2 cm)

Power Requirements - Universal AC power supply (100-240 VAC at 50/60 Hz) 50 VA. Internally rechargeable battery
