Ohmeda 200 Intermittent with Diamond

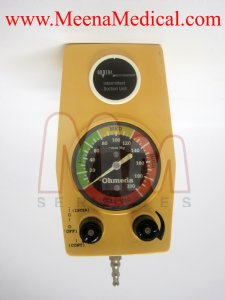

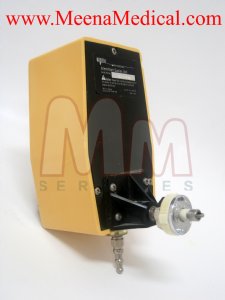

Ohmeda 200 Medical Intermittent Suction with Diamond - Preowned in Good Condition

VENDOR DESCRIPTION

The Intermittent Suction Unit (ISU) with mode selection for intermittent, off and continuous suction. Intermittent mode utilizes a pneumatic logic device to cycle the unit automatically, returning the system to atmosphere in the "OFF" cycle and from 0 to Full VAC in the "ON" cycle.

Timing cycles are adjustable from 3 to 30 seconds. Intermittent flow rate shall be adjustable from 0 to 13 Lpm, preset at 8 Lpm. Both mode selector and vacuum regular controls are lockable. The regulator module and gauge assembly are interchangeable with the Continuous Vacuum Regulator. Gauge face has color coded ranges, glow in the dark needle and increments.

FEATURES

Dual Modes - intermittent and continuous

Quiet, reliable operation

Dependable, time tested gauge and controls

Provides Full VAC regulation

Low maintenance, easy to service

Large, easy to read gauge

SPECIFICATIONS

Flow Rate:

 Intermittent - 0-13 L/min (preset at 8 L/min)

 Continuous - 0-80 L/min (not adjustable) without fittings at full increase

Gauge Accuracy: +/- 10 mmHg + 5 % Full Scale Deflection

Dimensions: 6.6" H x 3.5" W x 4.8" D (16.9 H x 8.9 H x 12.2" D cm)

Weight: 1lb. 11 oz. (781 gr.)

Vacuum Range: 0 to full range of available vacuum

Gauge Range:   0-200 mmHg and full vacuum

Timing: 3 to 30 seconds Independent on and off Preset 15 seconds on/8 seconds off Begins in the "OFF mode"

Adaptor: Ohmeda Diamond

RESOURCES

Ohio Intermittent Suction Unit Instructions

Ohio Intermittent Suction Unit Datasheet

Ohio Intermittent Suction Unit Wall Adaptors

CONTENTS

Qty - 1 Ohmeda 200 Medical ISU with Diamond Adaptor (# 6701-1251-901)

Only items specified in the contents section are available with product.

CONDITION

Cosmetic - Good

Working - Good

Please contact us for any more information

052912
