Protocol Propaq Encore 202EL Patient Monitor - Preowned in Good Condition
VENDOR DESCRIPTION
The Propaq ENCORE Patient Monitor is designed specifically for the traveling anesthesiologist, emergency room, and critical care transport. This multi-parameter monitor features ECG, SPO2 and NIBP with Printer / Recorder. The Propaq has a built-in bed rail hook and integral battery. The monitor is light weight, fast, portable and easy-to-use.
The Propaq Encore Expansion Module attaches to the monitor and houses additional capabilities. The Expansion Module can be fitted with the SpO2, CO2, and Printer options.
The Propaq Encore is intended for ECG monitoring of either a five-lead or three-lead configuration, including the Marriott configuration 1 (MCL1 requires all three electrodes). The five lead configuration can derive one of seven user-selected signals, Lead I, II, III, aVR, aVL, aVF, or V.
The Propaq Encore noninvasive blood pressure channel (NIBP) indirectly measures arterial pressures using an inflatable cuff. If ECG is also monitored, the Propaq Encore synchronizes the NIBP measurement process to the occurrences of the R-wave, increasing accuracy in cases of extreme artifact, diminished pulses, or some dysrhythmias.
Propaq Encore monitors provide two temperature channels. When both channels are active, the difference temperature (?T) is also displayed. You can select °C or °F.
Defibrillator Synchronization Connector allows connection with a LIFEPAK 5 or LIFEPAK 6s defibrillator for synchronized cardioversion.
The Propaq Encore and the Acuity Central Monitoring System allows communication by means of an ethernet network system installed in your facility. The Acuity System operator can view the patient data and control most of the bedside Propaq functions. The Propaq Encore connects to the Acuity System through an Acuity network cable that plugs into the Propaq right side panel.
This Modem-Propaq Option allows telecommunication between a Propaq Encore and the Acuity System by means of external modems. This option is configured with the Propaq-to-Acuity option.
Battery Charging Light is a green light which turns on when a power source (ac power adapter or external dc source) is connected and the battery is charging. Although the monitor may be turned off, battery charging continues when an external power source is connected.

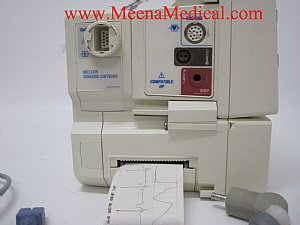

The Expansion Module with Printer (EMP) provides a lightweight 3-channel recorder. The Propaq Encore printer provides high-resolution, fully annotated, real-time printouts that simultaneously document up to three waveforms and numerics for all active vital signs.

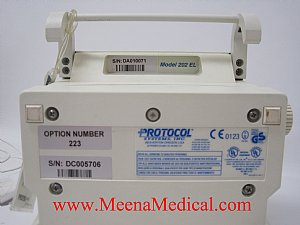

Propaq Encore, Model 202-EL, Monitors Adult 3- or 5-Lead ECG, NIBP, Nellcor OxiMax SpO2, Expansion Module & Printer and 2 channels of temperature
FEATURES
ECG, 3-lead or 5-lead configurations, 0.05-40/0.5-40 Hz
NIBP, with neonatal, pediatric and adult modes
Temp, 2 channels: YSI 400 & 700 series-compatible connectors
Defibrillator Synchronization
Real-time Analog output of ECG
Battery Charging Light
Speaker
Connector for Acuity or Modem-Propaq
No Invasive Pressure
Nellcor SpO2 Connector (without motion tolerance)
Pulse Oximetry (SpO2)
Printer
RESOURCES
Welch Allyn Propaq Encore Brochure
Welch Allyn Propaq Encore Reference Guide
Welch Allyn Propaq Encore Technical Specifications
Welch Allyn Propaq Encore Service Manual
CONTENTS
Qty 1 - Protocol Propaq Encore 202EL
Qty 1 - ECG cable
Qty 1 - Pulse oximeter Finger probe
Qty 1 - Blood pressure hose and Adult cuff
Only items specified in the contents section are available with product.
CONDITION
Cosmetic - Good
Working - Good
Please contact us for any more information
