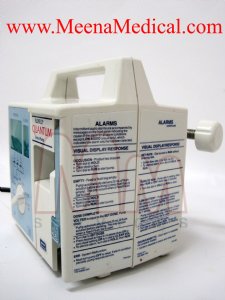

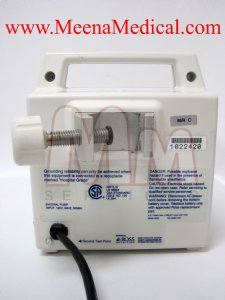

Ross Flexiflo Quantum Enteral Pump

Ross Flexiflo Quantum Enteral Pump - Preowned with Good Condition





VENDOR DESCRIPTION

The FLEXIFLO® QUANTUM™ Enteral Pump is a microprocessor (computer)-controlled pump that provides for accurate, controlled enteral feeding in a safe, user-friendly system. The Quantum Pump is a volumetric pump that uses a specially designed feeding set, which includes a cassette that delivers measured amounts of enteral product. As an optional feature, the Quantum Pump will flush the feeding set and indwelling feeding tube each hour with a 25-mL flush.





FEATURES

Automatic priming (no manual priming is necessary)

Automatic flush feature

Dose setting

Motor speed is continuously monitored

Senses malfunctions that could result in gravity flow

Volume-fed accumulation displays for enteral product and flush solution

Flow-rate selection from 1 to 300 mL/hr in 1-mL/hr increments

Accuracy to ±10% or ±0.5 mL/hr, whichever is greater

8-hour battery operation at 125 mL/hr, when fully charged

Alarms:

–      OCCLUSION

–      EMPTY

–      DOSE COMPLETE

–      TURN TO RUN

–      LOW BATTERY

–      DOOR/CASSETTE

–      SET RATE

System self-check

Adjustable alarm volume

User-friendly operating controls

Simple setup (one-hand cassette loading)

Memory—Automatic retention





SPECIFICATIONS

POWER

Voltage: 100 to 130 VAC, 47-63 Hz, 1 Phase

Power: 4 watts (average)

Fuse: 1/2 AMP, SB type

Line Cord: Hospital-grade, nondetachable (10 feet)

Leakage: Less than 100 microamps



MECHANICAL

Height: 8.25 inches

Width: 7.5 inches

Depth: 6.0 inches (8.0 inches with pole clamp)

Weight: 7.2 pounds



OPERATIONAL SPECIFICATIONS—FLOW RATES

Range: 1-300 mL/hr

Increments: 1 mL/hr

Accuracy: ±10% or ±0.5 mL/hr, whichever is greater (refer to

CHECKING PUMP ACCURACY, page 13).

Pressure: Pumps against 15 psi (mean) back pressure before occlusion alarm.



BATTERY OPERATION

Type: 2.1 Ah rechargeable sealed lead acid

Voltage: 8V; the pump will fully recharge in a maximum of 8 hours

Expected Life: When fully charged, 8 hours at 125 mL/hr.





RESOURCES

Ross Flexiflo Quantum Enteral Pump Operating Manual





CONTENTS

Qty - 1 Ross Flexiflo Quantum Enteral Pump



Only items specified in the contents section are available with product. If questions please feel free to contact us





CONDITION

Cosmetic - Good

Working - Good



Please contact us for any more information
