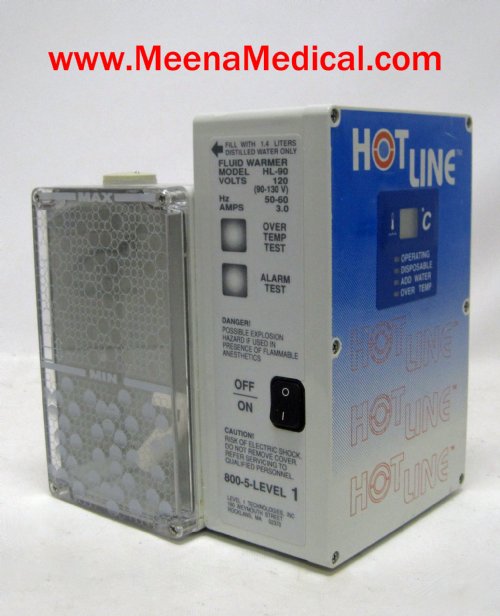

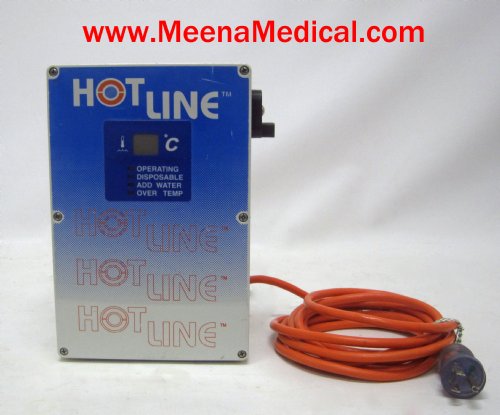

Smiths Medical Hotline Fluid Warmer HL-90-A

Our Products: Physician Equipment > Warmers
SKU: SMHL90AFW
Brand: Smiths Medical
Units in Stock: 1
This Smiths Medical Hotline Fluid Warmer HL-90-A is New and not used we sale it as Preowned and in Excellent Condition. This unit is New but the older model, This unit functions as intended.
Price: $215.00
Add to the cart Add to Cart
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
Smiths Medical Hotline Fluid Warmer HL-90-A
(Click to see larger image and other views)
Previous Item Previous Item   Next Item Next Item
Product Details
Smiths Medical Hotline Fluid Warmer HL-90-A:

VENDOR DESCRIPTION:

The HOTLINE Warmer delivers blood and intravenous fluid at normothermic temperatures by surrounding the sterile intravenous line with a layer of warmed recirculating solution. An onboard recirculating solution supply is heated to 41.5°C ± 0.5 and circulated through the outer lumen of the HOTLINE Fluid Warming Set, which surrounds the intravenous line.

The HOTLINE Warmer employs a safe, recirculating solution heating system, inherently free of "hot spots,” to actively warm the patient line.  Electronic circuitry continuously monitors the recirculating solution temperature. The primary temperature control circuit limits the recirculating solution to 42°C maximum. In the unlikely event of a malfunction of this circuit, a second "watchdog” circuit will visually and audibly alarm and stop the recirculating solution pump if the temperature reaches 43°C. Fluid in the HOTLINE Fluid Warming Set is never exposed to any damaging or dangerous temperatures while the HOTLINE Warmer is operating.

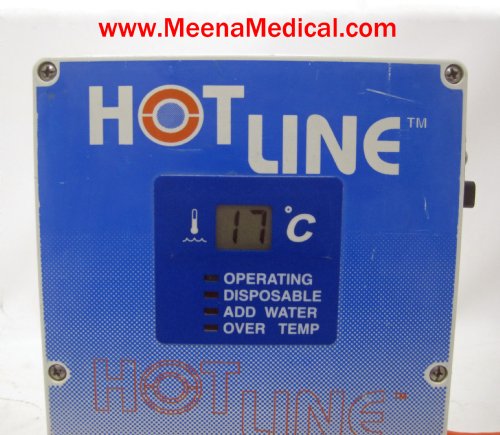

The recirculating solution temperature and visual alarms are indicated on the Display Panel on the front of the HOTLINE Warmer. A green Operating light illuminates on this panel when the HOTLINE Warmer is set up and operating correctly


FEATURES:
  • The Hotline HL-90-A keeps blood and fluids warm between 37 - 41°C to deliver warm fluids to the patient
  • It is Easy to use: less time to set up and easy to disconnect from the patient

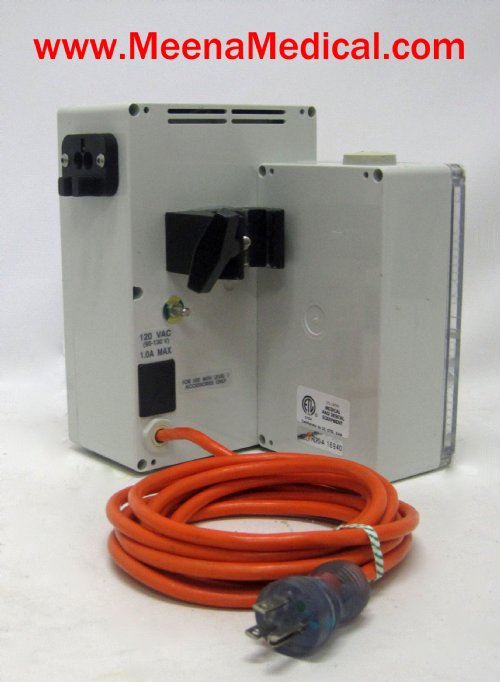

  • Unit can attach to an IV Pole


SPECIFICATIONS:

Overall Height: 9.5”
Overall Width: 8.3”
Overall Depth: 7”

Overall Weight: 7 lbs empty

Recirculating Solution Capacity: 1.4 L

Electrical: 115V; 50/60Hz; 3.0 Amps



RESOURCES:

HL-90 Hotline Fluid Warmer Operators Manual



CONTENTS

Qty 1 - Smiths Medical Hotline Fluid Warmer Model HL-90-A


Only products specified above will be delivered to the buyer


CONDITION:

Cosmetic: Excellent
Working:   Excellent
