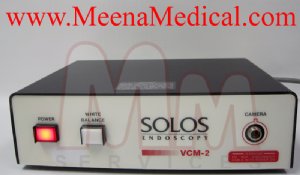

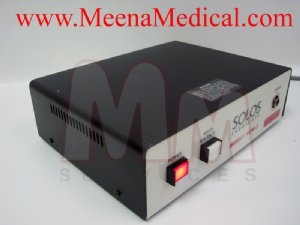

Solos GS-9400S VCM-2 Color Video Camera

The Solos High Resolution S-VHS VCM-2 Camera was designed and manufactured for the needs of today’s operating rooms, physicians, and emerging minimally invasive endoscopic procedures. As the need for higher resolution and low light sensitivity increases, due to the number of less invasive endoscopic procedures, the performance of the video camera becomes an integral part of the imaging system.

Acting as the surgical staff’s eyes, the camera must be capable of producing crisp, clear, and color accurate images of the area being viewed. Providing S-VHS output (the highest quality video signal produced – 500 lines of resolution), and two standard composite video outputs, the ability to drive accessory devices such as printers, VCRs and disk recorders is achieved without any loss of signal.

With the multiple needs of a busy operating room, the VCM-2 is capable of producing superior image quality and true color rendition for all rigid and flexible scope applications under all light level conditions.

FEATURES

ON/OFF Power Switch - Red Light is illuminated when power is ON

Chassis Connector – Screw-on Cable

White balance Push Set

500 lines of resolution

Two standard composite video outputs

S-VHS Output

Keyed Connector Insert

SPECIFICATIONS

Signaling System: NTSC

Power Consumption: 16.8 Watts

Scanning: 2.1 Interlace Scanning

Resolution: 500 or more Horizontal Lines

Minimum Subject Illumination: 5 Lux

S/N Ratio: 46dB

Video Output:

- VBS 1.0 Vp-p (BNC PIN) (2) Two;

- Separate Y and C Signals (S-VHS) (1) One

White Balance: Push Set (manual)

Sensitivity: + 6dB (Automatic)

Output Impedance: 75 OHMS Unbalanced

Recommended Illumination: Xenon Light 6000 degrees K

Camera Head Weight: 2.9 oz.

Camera Control Unit Weight: 9 lbs

Camera Cable Length: 9’

Operating Voltage: 120 VAC 50/60 Hz
