Spacelabs Burdick Eclipse 850i:
VENDOR DESCRIPTION

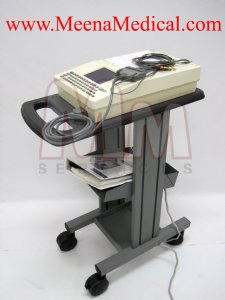

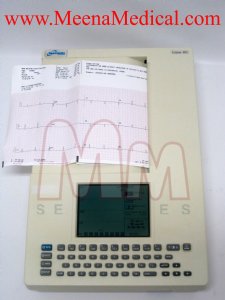

Spacelabs Burdick Eclipse 850i Interpretive multi-channel electrocardiograph with preview screen. Thermal printer produces crisp, accurate 3, 4 or 6 channel ECG reports and up to 12 channel continuous rhythm reports on 8.5" paper.
FEATURES
Automatic, manual or 12-lead rhythm operation for maximum ?exibility

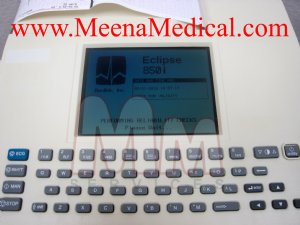

Easy-to-read, backlit preview screen allows patient monitoring
Powerful interpretation algorithm includes ?ve factors
SPECIFICATIONS
MODEL Eclipse 850i
Paper size: 3.5x 11"
Recording technique: Digital thermal array
Channels: 3.4.6.12
Chart speeds, mm/s: 10, 25, 50
Type: Portable
Integral printer: Yes
PREVIEW SCREEN (MICROPROCESSOR): LCD, 3 leads
PROGRAMS (USES): Pediatric and adult resting ECG
PATIENT INFO. (MICROPROCESSOR) Name, ID no., sex, age, date, time, weight, BP, loca- tion, medication, race, DOB, comments, physician, clinical classification, technician, ECG TRANSMISSION (MICROPROCESSOR) Yes
Type: SCP-ECG and fax
H x W x D, cm (in): 29.9x 45.7 x 10.5 (11.7x 18 x 4.1)
WEIGHT, kg (lb): 6.45(14.2)
Switching (LEADS): Automatic/manual
Sensitivity, mm/mv (LEADS): 5,10,20,5/10, 10/20
No. acquired simultaneously (LEADS) 12
Frequency range, Hz Diagnostic (LEADS) 0.05-150
Filtered (LEADS): 0.5-40
CONTENTS

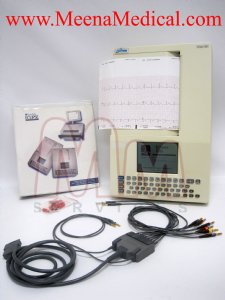

Qty - 1 Spacelabs Burdick Eclipse 850i

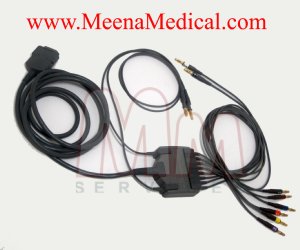

Qty - 1 Burdick ECG cable w/ leads
If it isn't in the pictures and is not specified here don't assume you will be getting it.
CONDITION
Cosmetic - Good
Working - Good
Please contact us for any more information
042012
