Stratagene CCD Camera & Computar Zoom Lens

Stratagene CCD Camera & Computar Manual Zoom Lens - Preowned in Good Condition

VENDOR DESCRIPTION

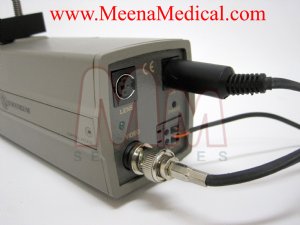

Stratagene High Performance CCD Camera (4912-2010/0000)

Monochrome CCD camera with 768 (H) x 494 (V) active pixel elements, It features a 1/2” format microlens sensor and adjustable electronic iris, 8-step shutter timing, AGC peak/average, Gain, AGC on/off, gamma, and black level.

The Eagle Eye II still video system is well suited for direct imaging of chemiluminescent Western blots. The system’s charge-coupled device (CCD) camera efficiently captures those wavelengths of light emitted by common chemiluminescent substrates.

The 4900 Series is known as the industry’s workhouse because its solid construction, extensive feature set, and specifications have made it ideal for the scientific, machine vision, and security communities.

Computar Manual Zoom Lenses provide manual adjustment of focal length, iris and focus. Computar lenses are for use with CCD Cameras and Video equipment for Machine Vision applications such as Image Processing, Automated Inspection, Identification, Automated Gauging, Guiding, Positioning and other Factory Automations.

Easy operation and a unique zoom lens contribute to precise imaging and superior results. Even first-time users can produce still video images that are truly photo quality. These images can be stored as electronic TIFF files for data archival, analysis, slide making and publishing. The image files are compatible with both Macintosh and PC computers.

SPECIFICATIONS

4912-2010/0000

High performance monochrome CCD camera

1/2-inch format interline transfer sensor

768(H) x 494(V) active picture elements

570 TVL(H) resolution

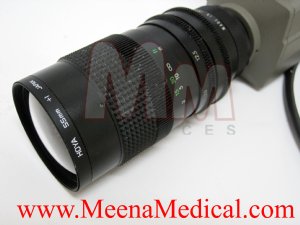

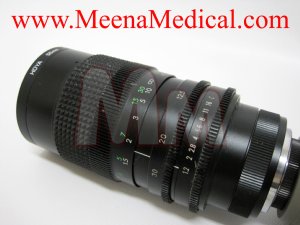

Computar Zoom Lens: Manual

Lens Format inches: 2/3

Focal Length mm: 12.5 ~ 75

F-Stop  1.2 ~ 16

Iris Type: Manual Iris

Filter Size mm:  0.75

Dimensions mm: 59.9 x 114.5

Weight g: 483

CONTENTS

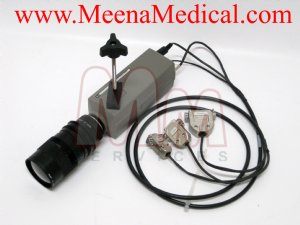

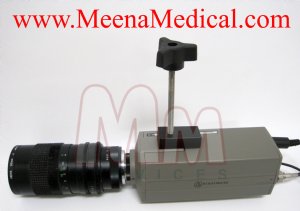

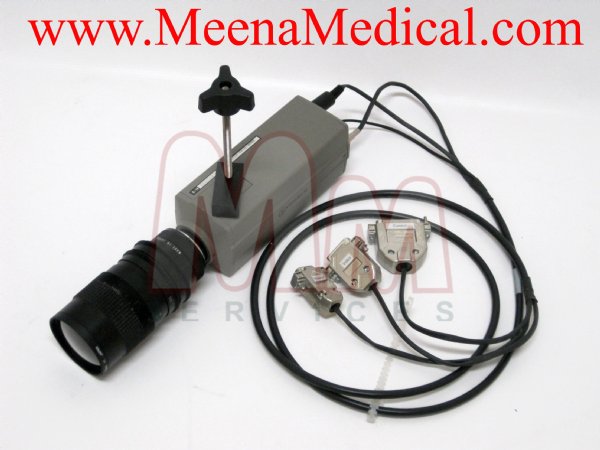

Qty - 1 Stratagene CCD Camera (4912-2010/0000)

Qty - 1 Computar 12.5-75mm Manual TV Zoom

Only items specified in the contents section are available with product. If questions please feel free to contact us

CONDITION

Cosmetic - Good

Working - Good

Please contact us for any more information
