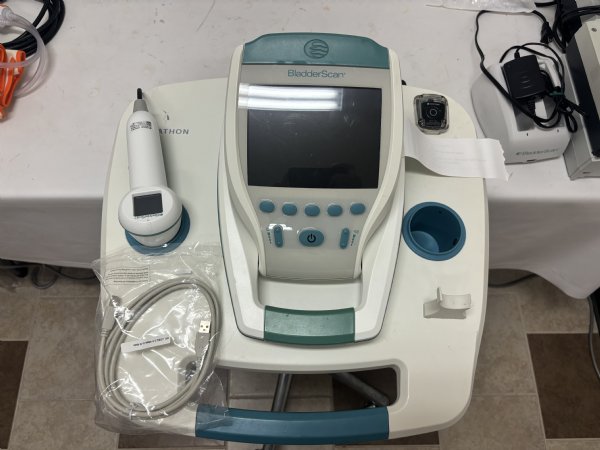

Verathon BVI 9400 - Bladder Scanner

The Bladder Scan BVI 9400, with Neural Harmonics technology, is a portable ultrasound instrument that provides a noninvasive measurement of urinary bladder volume. The device consists of an ultrasound probe that scans the patient’s bladder and a compact, battery-operated console that provides measurement-related information. Bladder Scan instruments are quick and easy to use. When the user presses the Scan button, within seconds the BVI 9400 measures ultrasonic reflections on multiple planes inside the body and produces a three-dimensional image. Based on this image, the BVI 9400 calculates and displays the bladder volume. A sonographer is not required. Neural Harmonics technology in the BVI 9400 sharpens accuracy and accelerates speed of measurement. Volume measurements made with Neural Harmonics technology are more accurate than those made with conventional two-dimensional ultrasound, as they are based on a more complex, multifaceted image of the bladder. This technology–applying multispectral analysis to a robust data set–helps reduce margin of error and minimize uncertainty in essential measurements of bladder function. After a scan has been taken, a unique aiming icon guides the operator to optimal probe placement with a comprehensive, three-dimensional display which shows the bladder in two cross-sectional images verifying a complete scan has been achieved. Bladder volume, patient type, directional aiming with real-time feedback, battery status, and usage rate indicators are all displayed on the device’s main display. The Bladder Scan BVI 9400 contains an onboard thermal printer that allows the user to print exam results quickly with the press of a button. A calibration system, consisting of a tank and target, allows the user to easily calibrate the device by scanning a known target. Scan Point with QuickPrint allows the user to calibrate the device and update software through a web-based interface. The Bladder Scan BVI 9400 system includes a battery charger for the custom, user-replaceable lithium-ion battery used in the system. The Bladder Scan BVI 9400 may be mounted on a mobile cart, which holds the instrument securely and provides storage for ultrasound gel and other accessories.

BVI 9400 Console

BVI 9400 Probe

Battery charger/wireless hub with AC power adapter and power cord

Lithium-ion battery

Bladder Scan BVI 9400 In-Service CD or USB, containing the operations & maintenance manual

Thermal paper roll for the printer

Ultrasound gel

Mobile cart (Optional)

Universal accessory basket (Optional)

Scan Point with QuickPrint software install CD (Optional)

Scan Point user documentation (Optional)

Calibration kit (Includes calibration tank and calibration target) (Optional)

Lithium-ion battery

Internally powered, Type BF

Expected product life 5 years

Weight 2.36 kg (5.2 lbs), with battery

Display 13.36 x 10.13 cm (5.26 x 3.99 in) (640 x 480 pixels, 120 dpi)

Integrated printer Thermal printer
